SrumECmd

Overview

SrumECmd is a command line tool developed by Eric Zimmerman, to process the SRUM Database on Windows operating systems, identifying items such as:

• Executable filepaths
• Timestamps of execution times
• Byte read/write processed by an application
• Power Consumption details
• Network Connection details
• Details of push notifications

Further Information the SRUM can be found on Darkcybe - Evidence of Execution

Tool Name	Version	MITRE ATT&CK Tactic	MITRE ATT&CK Technique
SrumECmd	V0.5.1.0	Execution

Instructions

Parsing a Live or Copied SRUM.dat Database

The default location for the SRUM database is C:\Windows\System32\SRU\. The database can be interrogated on a live system or against a collected copy of the SRUM database.

SrumECmd.exe -f C:\Windows\System32\sru\SRUDB.dat --csv /path/to/output

Output

SrumECmd will produce a number of .csv files on completion of the tools execution with differing objects of interest in each. Examples of the output of the tool for a number of the objects can be seen below.

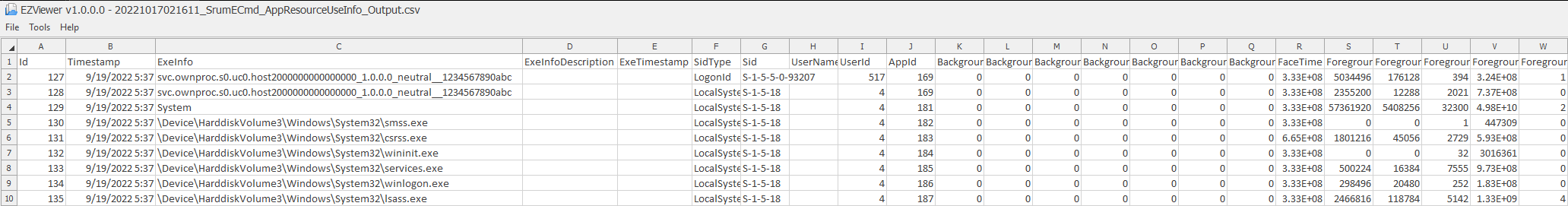

1. App Resource Usage

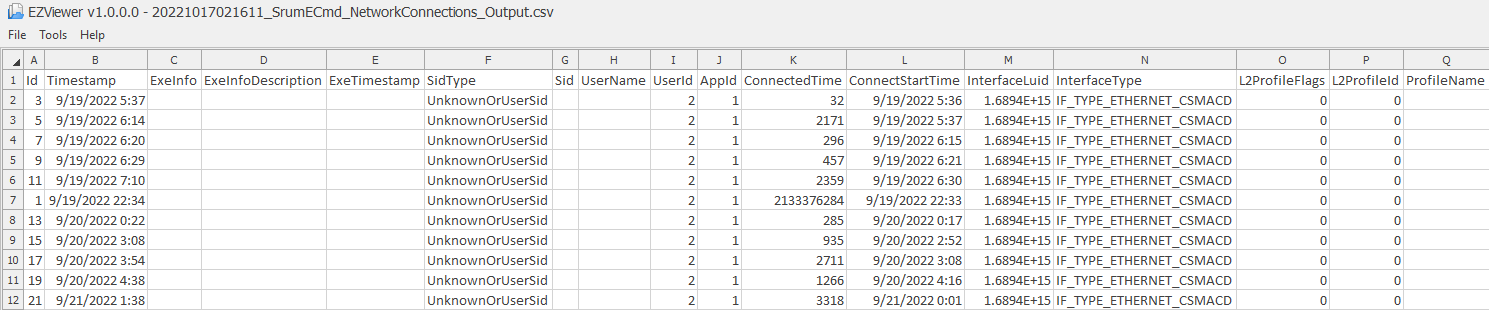

2. Network Connection

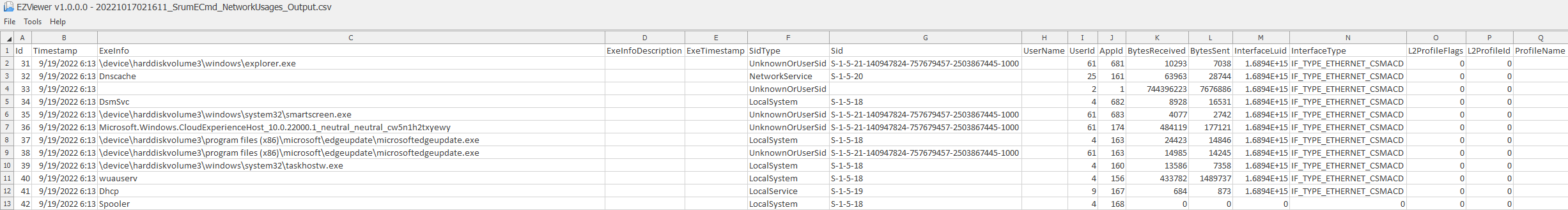

3. Network Usage

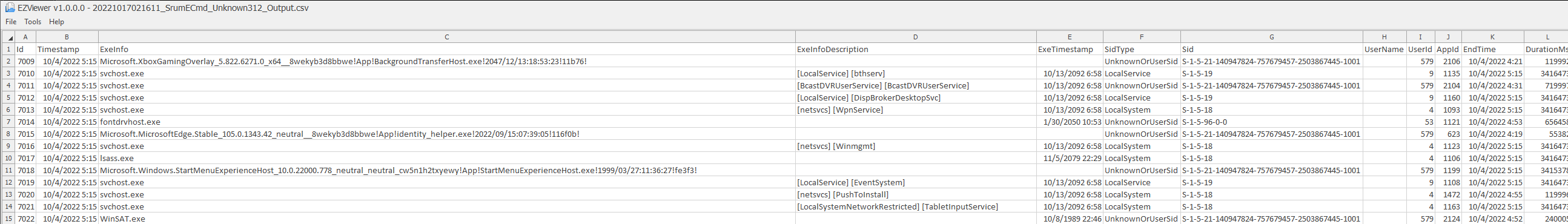

4. Unknown 312

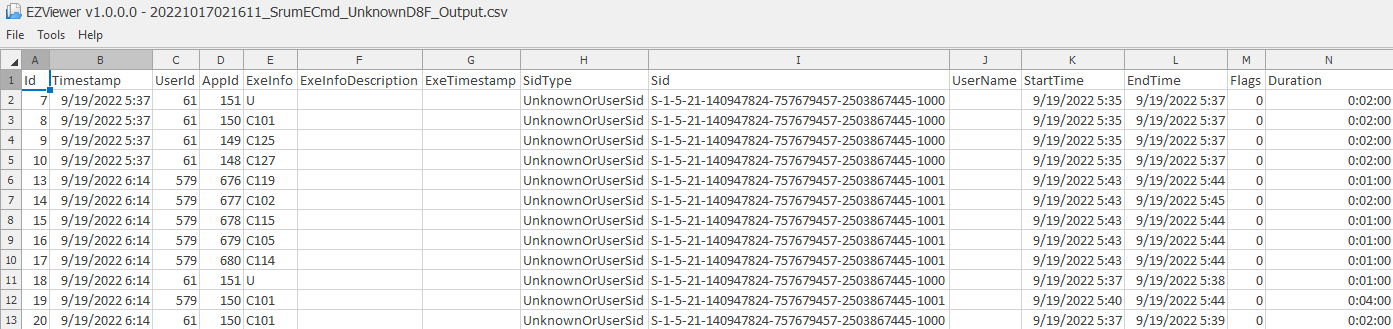

5. Unknown D8F
